Built with exceptional quality and reliability
Optigal® PinnacleRoofing That Stands the Test of Time
Designed to last over 25 years, our steel roofing systems combine durability with advanced PU/PA coatings to withstand even the harshest climates. Engineered for C4-class environments, they deliver superior corrosion resistance—ideal for industrial and coastal settings where strength and reliability are non-negotiable.
×
Variants
Cool Roof
Anti Microbial
Anti Static
Anti Graffiti
Anti Dust
High Gloss

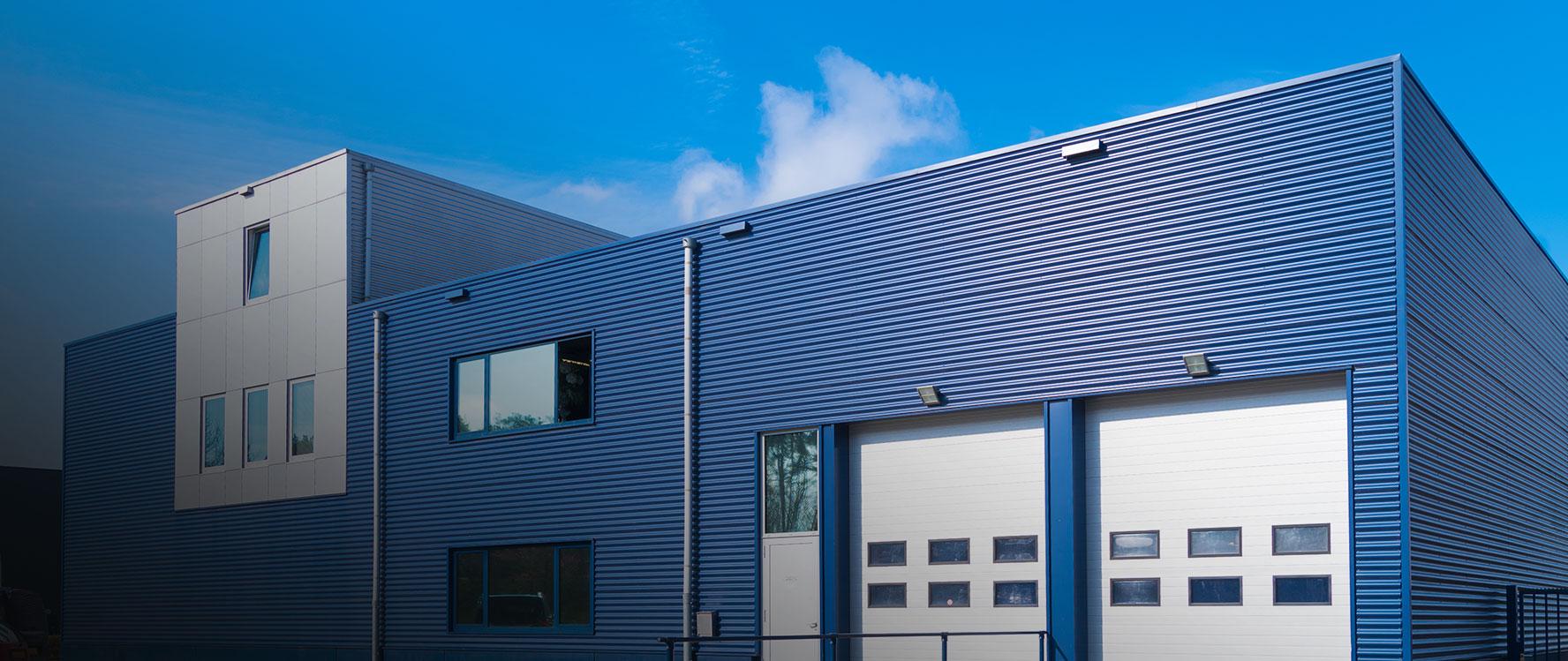

Applications
Exceptional quality and reliability. Exceptional quality and reliability. Exceptional quality and reliability.
Product Specifications
Performance Quality Tests
Marking & Packaging
| Sr. No. | Parameter | Optigal® Pinnacle |
| 1 | Base Metal Equivalent Specification | EN 10346 (Zn-Mg-Al alloy coating) |
| 2 | Colour Coating Equivalent Specification | EN 10169 |
| 3 | Grade & Thickness | S250GD/ S280GD : 0.40 - 0.80 mm S320GD/ S350GD : 0.40 - 0.70 mm S550GD : 0.45 - 0.60 mm |
| 4 | Thickness Tolerance | 0.40 < 0.60 : +/-0.025 mm 0.60 ≤ 0.80 : +/-0.03 mm For S550GD, 0.60mm: +0 /-0.050mm |
| 5 | Width Range | 1000 - 1250 mm |
| 6 | Width Tolerance | +6/-0 mm |
| 7 | ZM Coating, GSM | ZM120 |
| 8 | Paint Type | PU/PA |
| 9 | Top Coat- DFT | Primer - Nominal 25µm Top Coat - Nominal 30µm |
| 10 | Back Coat- DFT | Primer - Nominal 5µm Back Coat - Nominal 15µm |
| Note - Above paint properties refer to top coat only. | ||
| 1 | Pencil Hardness | H-2H |
| 2 | T Bend | 3T - S250GD/S280GD/S350GD 6T - S550GD |
| 3 | MEK | 100 DR min |
| 4 | Scratch Resistance | 1.5 Kg |
| 5 | Cross Hatch | 1mm X 1mm |
| 6 | Reverse Impact | 10 J min S550GD - NA |
| 7 | Salt Spray (hrs) ASTM B 117 | 2000 |
| 8 | QUV (1000 hrs) ASTM G 53-94 | DE - 5 max Gloss Retension - 40%min |
| 9 | Gloss | 30 - 60 GU or as per sample |
| 10 | Delta E | (Against approved sample ) < 1.0 for Light Shade & <1.5 for dark Shade NA for metallic and wrinkle shades |
| Note - Above paint properties refer to top coat only. | ||
| 1 | Guard Film (Optional) | As per order (50µm min) |
| 2 | Packing | Standard metal packing |
| 3 | Coil weight | 1.5 - 10MT For with Guard Film 3.5MT max |
| 4 | Liner Marking | Sandwich Liner marking (As per order) |
| 5 | AMNS Monogram | Yes |
| 6 | ID Sleeve | Upto 7.5MT coil wt- 5 mm CB Sleeve >7.5T- 15mm CB Sleeve |
| 7 | Minimum Order Quantity | 40MT for Standarad colour |
| Note - Above paint properties refer to top coat only. | ||
